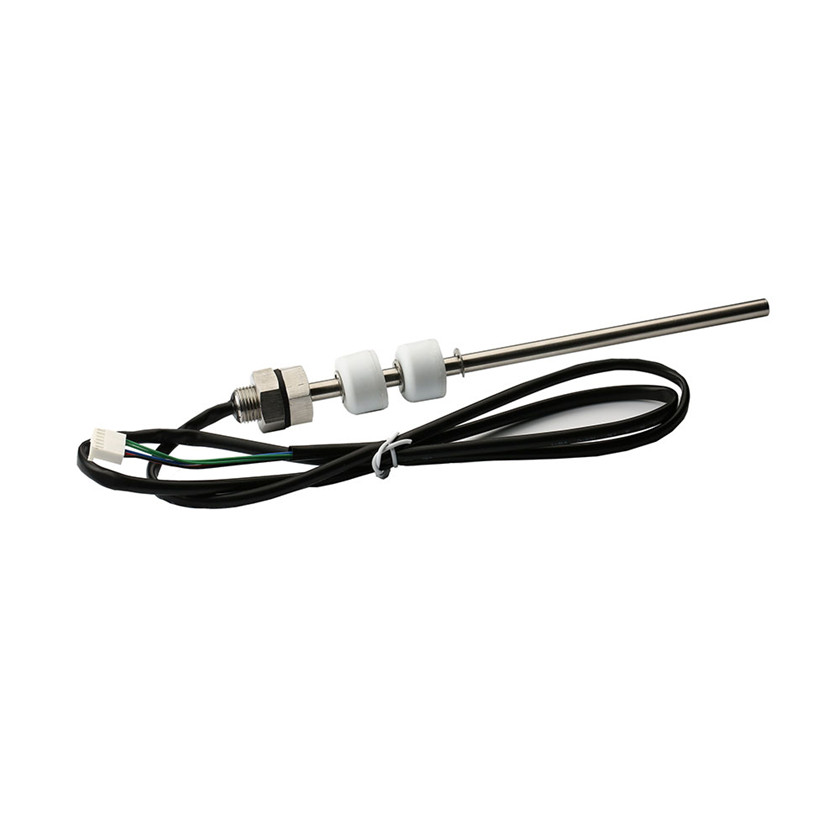

LS-2201-601 Float level switch with temperature detection
LS-2201-601 Float level switch with temperature detection
LS-2201-601 Float level switch with temperature detection
Product Name : LS-2201-601 Float level switch with temperature detection
The magnetic float swith is a device used to sense the level of liquid in a tank.There is a magnet in the float ball and a magneitc reed switch in the rod.when the liquid rises,it drives the float ball move(up or down)then output a singal. The material of body is SS304 ,and the length of product is 238.5mm.Double float with temperature detection.Our water liquid level sensor can control two different liquid level height and check temperature about liquid.
Support Hotline : 0755-23699909
Product Details

Contact Form : A type (normal open) contact.

♦ Max. Contact Rating: 10W

♦Max. Switching Voltage:DC 100V

♦Max. Carrying Current:DC 1.0A

♦ Max. Switching Current: DC 0.5A

♦ Initial Contact Resistance:500 mΩ Max

♦Electrical Life : 10E6 operations Min. (DC 100V, 0.1A, Load R)

♦ Shock Resistance: 30G Max
